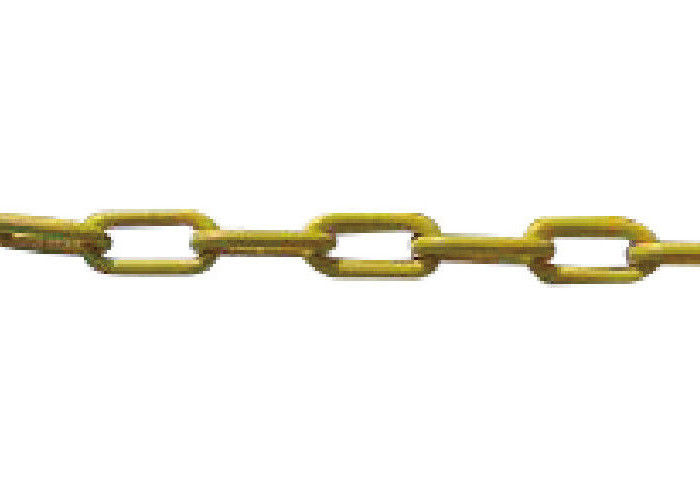

500KN Short Industrial Lifting Chains With Yellow Painting / Lashing Chain Link

500KN Short Industrial Lifting Chains With Yellow Painting / Lashing Chain Link

500KN Short Industrial Lifting Chains With Yellow Painting / Lashing Chain Link

Thông tin chi tiết sản phẩm:

Place of Origin: CHINA
Hàng hiệu: SEAGULL
Chứng nhận: GS/CE
Model Number: LASHING CHAIN

Thanh toán:

Minimum Order Quantity: 5 PCS
Giá bán: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with steel case for outer packing
Delivery Time: 30 working days after received your payment
Supply Ability: 30,000mtr per month
Liên hệ với bây giờ
Chi tiết sản phẩm
Product Name: Lashing Chain Application: Warehouse, Building, Wharf, Ect.
Breaking Load: 61.5Kn - 850Kn Surface: Painting, Chrome
Standard: GS/CE

500KN LASHING CHAIN FOR INDUSTRIAL LIFTING CHAIN





KEY SPECS

KINDS SHORT LINK CHAIN
DIAMETER (mm) 7 10 13 16 19
DIAMETER PITCH (mm) 21 30 39 48 57
INSIDE WIDTH (mm) 10 14 18.1 22.4 27.8
OUTSIDE WIDTH (mm) 25.5 36 47.1 57.4 68.8
WEIGHT (kg/m) 1.1 2.2 3.8 5.7 8
BREAKING LOAD (Kn) 61.5 125 212 320 450



KINDS MID LINK CHAIN
DIAMETER (mm) 10 13 14 16 19 22 26
DIAMETER PITCH (mm) 40 52 50 64 76 86 92
INSIDE WIDTH (mm) 15 19.5 18.5 24 28.5 27 31
OUTSIDE WIDTH (mm) 37 48.5 49.5 59 69.5 74 86
WEIGHT (kg/m) 2 3.4 4.04 5.04 7.12 9.4 13.7
BREAKING LOAD (Kn) 61.5 212 246 320 450 608 850



KINDS LONG LINK CHAIN
DIAMETER (mm) 7 9 11 13 16 19 22
DIAMETER PITCH (mm) 45 53 63 80 100 100 120
INSIDE WIDTH (mm) 10 15 18 22 26 27 37
OUTSIDE WIDTH (mm) 25.5 35 43 51 61 68 84
WEIGHT (kg/m) 0.83 1.4 2.18 2.97 4.44 6.5 8.76
BREAKING LOAD (Kn) 61.5 102 152 212 320 450 610
